HUD Display 4" - Модул за проектиране върху предно стъкло
Цена: 115.00 лв.
Модул за проектиране на информацията от бордовия компютър на колата, на предното стъкло - реални обороти, километри в час, температура на маслото, напрежение на акумулатора, пробег и др.
Информацията се взима посредством връзка с OBD буксата от колата.

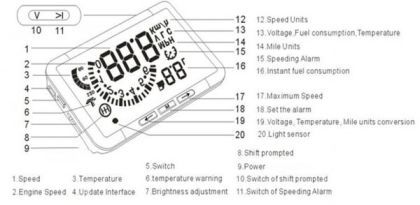

Детайли:
1 shows the current speed.
2 shows the speed of the engine, representative of light to reach the speed of scale, unit x1000 RPM.
3 shows the current temperature value of the car, when temperature reached 115 degrees alarm.
4 port upgrade the interface for the factory for testing and upgrades.
5 The power of the HUD.
6 temperature alarm lamp when the temperature reached 115 degrees, automatic red alert.
7 auto / manual brightness adjustment, you can manually adjust the brightness according to their environment; up self-locking to automatic light adjustment, toggle down to manually adjust brightness, automatically save the settings.
8 shift indicator on
When the engine speed and vehicle speed reaches a certain percentage (such as 2000 rpm, the speed of 60KM / H inside), suggesting that shift lights, gear tips to save fuel consumption to increase.
9 power cable with integrated design, full exposure and longer life.
10 Tips switch gear
CVT automatic transmission car or cars do not need to use when you can close without prompt, press the 0 shows that off, it shows 1, that open.
11 tips for speeding when the need to use the alarm switch, you can turn on or off, it shows 0, indicating that off, it shows 1, that open.
12 km in the International System of Units unit of general use kilometers per hour.
13 voltage, fuel consumption, temperature V is the voltage, L-hundred kilometers liters (currently unavailable), C for Celsius.
14 miles of flat
Some countries use mph as the speed measurement. HUD units for the miles you can switch display.
15 speed warning lights Set off alarm in case of speeding, the speed that light up, and voice prompts.
16 instantaneous fuel consumption
In the case of a speed, shows hundred kilometers.
17 top speed record
Opened to the highest recorded speed, long press to clear.
18 Set the alarm rate
Launched in the automotive state, long press the M key to display 0, you can set the value of a single segment 35-175 alarm; Long press M button to display the 1, then enter the multi-alarm state, respectively, in speed of 60,80,100,120.
19 speed, water temperature, voltage switching
Click in turn show the speed, water temperature, voltage values.
20 Automatic light-sensitive
In the 7 item to set the automatic sensor mode, this feature is available.

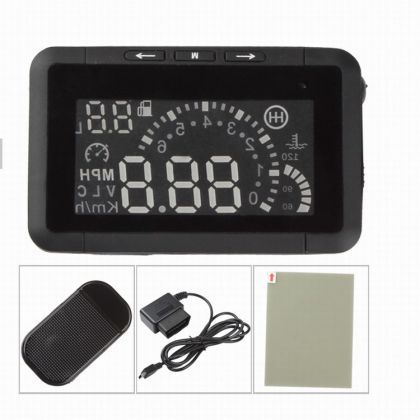

Съдържание на комплекта:
Дисплей, отразително фолио за стъкло, кабел за връзка ODB, антислип поставка за модула, инструкции за употреба.
Размери:10 см х 6см
Гаранция: 6 месеца
Main Technical Indicators
1. Service conditions:
Environment temperature: -400C—+800C
Barometric press: 86—106 KPa
Relative humidity: 10%—95%
Environment voice: <=60 dB(A)
2. Alarm of sound level:> =30dB(A)
3. Work voltage: 9V~16Vdc(12Vdc/400mA)
4. Size of product: 14x85x147 (mm)
5. Weight of product: 320g
Инструкции преди включване:
1. Know the type of your vehicle. When purchasing HUD, you need to choose the type of vehicle that meets the OBDII standards for normal use. Open the engine hood and find the paster below it (see the picture below), if it has words like OBDII CERTIFIED, then it can be installed. Check if there is a test diagnostic communication link (TDCL) under the steering wheel.
2. Find out the diagnostic link (see the picture below) of vehicle 16 pin and connect it well with OBDII connecting line. As different types of vehicles have different positions for diagnostic link and some are relatively narrow, patch cord can be purchased.
3. Put the give-away non-slip mat at the flat place in front of the navigation bridge, then you can place the host machine of HUD on it and adjust its location at any time.
4. The reflecting film should be pasted right above the H101 host machine and it should be able to reflect the mainframe screen.
Methods of pasting the film:
A . equably water the place that the film will be pasted on ;
B . rip off the covering layer of the film , and water both sides of it , and paste it to the right place.
C. After you have adjusted the location well, you can use a scratch board or something else flat to slick the film and squeeze the water inside out until there is no bubble or water in it.
D. A few minutes later, the moisture inside the film totally evaporates , then you can finish this by wiping away the water and dust around .
